6.6KW OBC+1.5KW DC-DC Converter Liquid-cooled

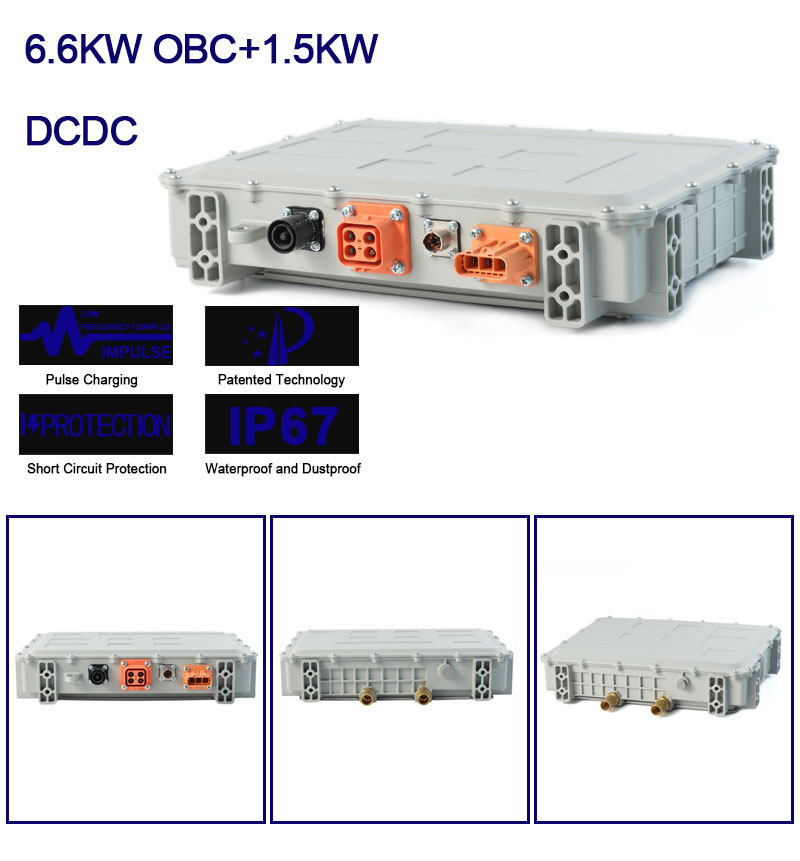

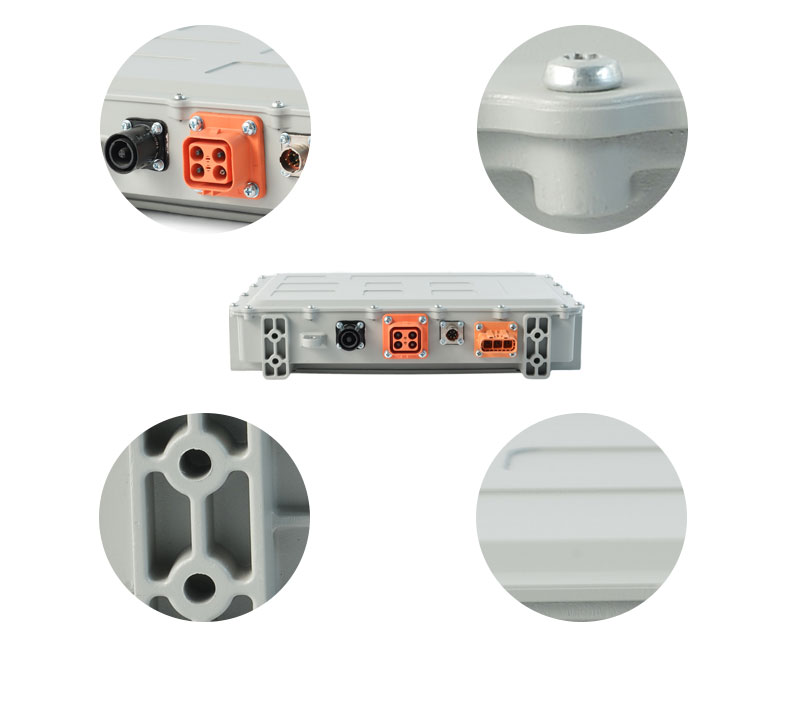

6.6KW OBC+1.5KW DC-DC Converter Liquid-cooled 85-265VAC/200-420VDC input 200-420VDC/13.8VDC output IP67

Download Specifications: Ovartech Liquid-cooled 6.6KW OBC+1.5KW DCDC CAD662DF400-12152 Data Sheet



The Ovartech CAD662DF400-14152 is a combination high-frequency 6.6KW battery charger and 1.5KW DC/DC converter in one package, Integrated high-frequency battery charger andDC/DC converter saves space, weight, and cabling  thereby minimizing the cost of inventory, installation, and service.

CAD662DF400-14152 on-board charger series is designed for electric vehicle battery chargingwith demand for efficiency, robustness and safety. The electrical input voltage for  CAD662DF400-14152 ranges from AC 85~265V, making it an ideal selection for worldwide usage. Its high-efficiency performance makes the charging more economical. CAD662DF400-14152 provides intelligent charging mode which adjusts the voltage in CC/CV/cut off automatically. It also features short-circuit, over voltage, over current and over temperature protections under charging. The CAN-bus interface delivers message with charging flow, interlock connection, and any disconnection or error message to VCU (Vehicle Control Unit) via BMS (Battery Management System).
CAD662DF400-14152 charger series is in compliance with SAE J1772 and IEC 61851 to meet international standard, and with IP 67 for critical operating environment.

Model CAD662DF400-14152
Power 6.6KW+1.5KW
Input voltage 85-265Vdc
Output current 0-20A
Output voltage 200-420Vdc
Cooling liquid-cooling
Dimension 454x291x83mm; 17.9×11.5×3.2”
Weight 8kg; 17.6lbs
IP rate IP67
Interface CAN BUS/Enable control
