3.3kw charger Air-cooled 3.3KW On board Charger

On-board 3.3kW Liquid-Cooled Charger (200-420VDC) 85-265VAC input 200-420VDC output IP67 Scalable-easily paralleled for 6.6kW / 9.9kW / 13.2kW

Download Specifications: 3.3KW OBC

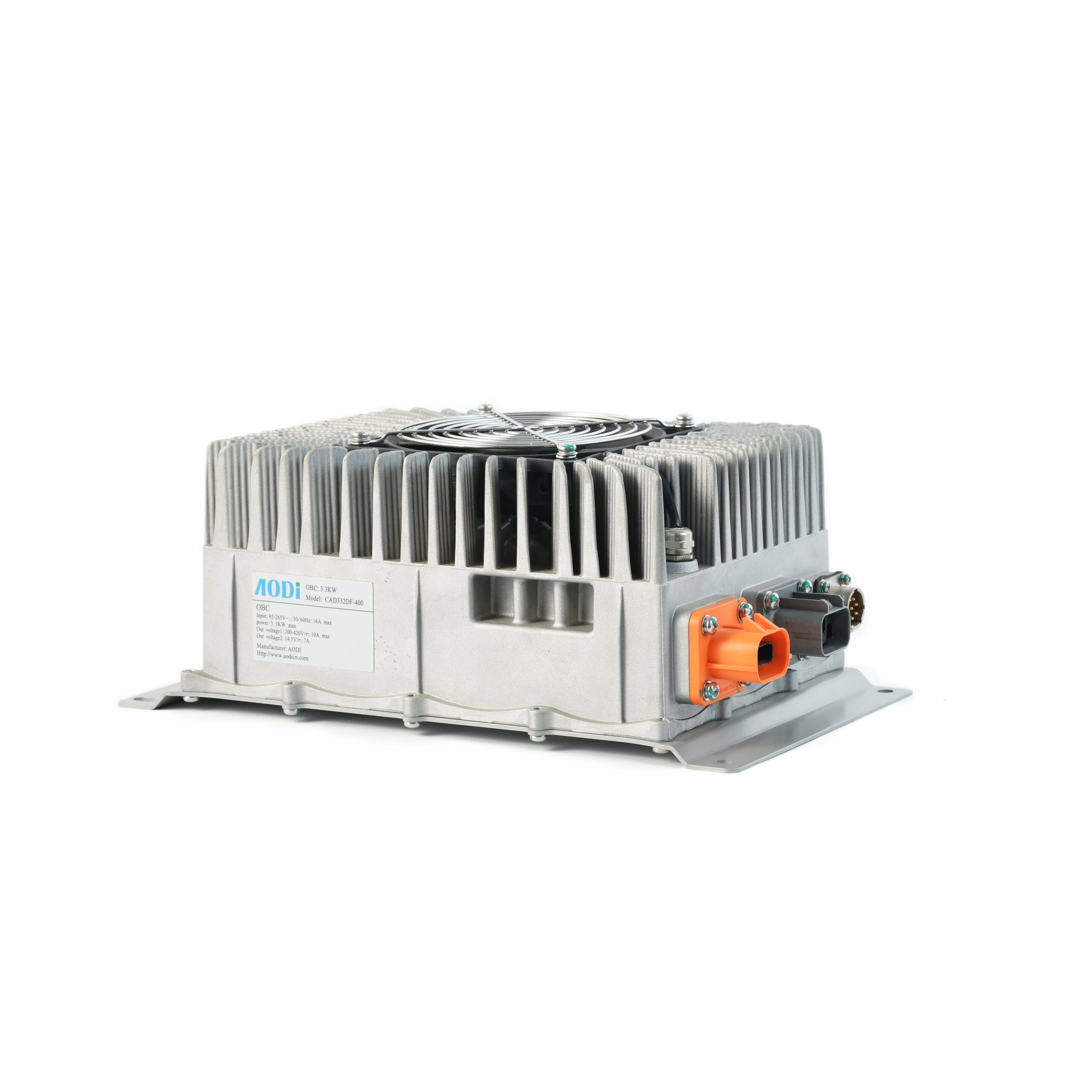

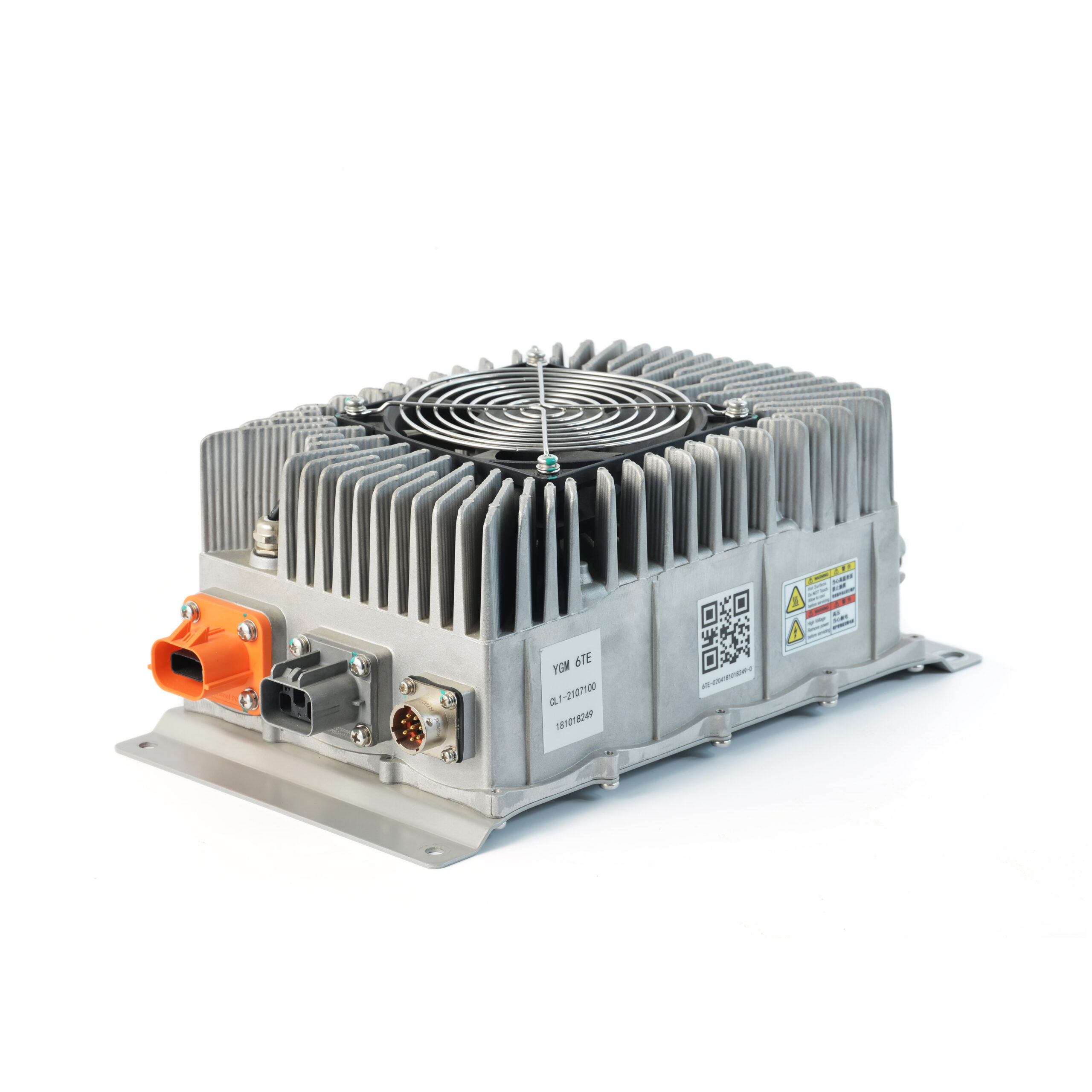

3.3kw charger Air-cooled 3.3KW On board Charger

The Ovartech CAD332DF-400A 3.3KW on-board charger series is designed for electric vehicle battery chargingwith demand for efficiency, robustness, and safety. The electrical input voltage for  CAD332DF-400A ranges from AC 85~265V, making it an ideal selection for worldwide usage. Its high-efficiency performance makes the charging more economical. CAD332DF-400A provides an intelligent charging mode that adjusts the voltage in CC/CV/cut off automatically. It also features short-circuit, over-voltage, over current, and over temperature protections undercharging. The CAN-bus interface delivers messages with charging flow, interlock connection, and any disconnection or error message to VCU (Vehicle Control Unit) via BMS (Battery Management System).
CAD332DF-400Acharger series is in compliance with SAE J1772 and IEC 61851 to meet international standards, and with IP 67 for the critical operating environments.

Model CAD332DF-400A
Power 3300W/3.3KW
Input voltage 85-265Vdc
Output current 0-10A
Output voltage 200-420Vdc
Cooling air-cooling
Dimension 305x217x122mm; 12×8.5×4.8”
Weight 4kg; 8.8lbs
IP rate IP67
Interface CAN BUS/Enable control




Q: Are you a trading company or manufacturer?
A: We are a manufacturer.

Q: How long is your delivery time?
A: Generally, it is 5-10 days if the goods are in stock. or it is 6 weeks if the goods are not in stock, it is according to quantity.

Q: What is the key technical advantage of your products?
A: We adopt digital control technology, which is convenient for remote upgrade and fully automatic production.

Q: What are your Engineering Testing and Validation capabilities?
A: We will respond to you within 2 hours and solve the problem within 24 hours.

Q: What are your terms of payment?
A: 100% prepayment.

Q: What is the MOQ (Mini Order Quantity)?

A: 1 unit.

Q: Do you accept customization?

A: Yes, OEM and ODM services are all supported.

Q: Will you provide a free sample before order?

A: Generally speaking, you need to pay for that.

Q: What is your sample policy?

A: We can supply the sample if we have the parts in stock, customers must pay the sample cost and the shipping cost.

Q: Do you test all your goods before delivery?

A: Yes, we have a 100% test before delivery, if necessary, we can send an inspection report before delivery.

Q: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive prices to ensure our customer’s benefit.

     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
