3.3KW OBC+1.5KW DC-DC Converter 85-265VAC/200-420VDC input 200-450VDC/13.8VDC output IP67
Download Specifications: Ovartech Liquid-cooled 3.3KW OBC+1.5KW DCDC CAD332DF400-12152 Data Sheet
3.3KW OBC+1.5KW DC-DC Converter 85-265VAC/200-420VDC input 200-450VDC/13.8VDC output IP67
Download Specifications: Ovartech Liquid-cooled 3.3KW OBC+1.5KW DCDC CAD332DF400-12152 Data Sheet

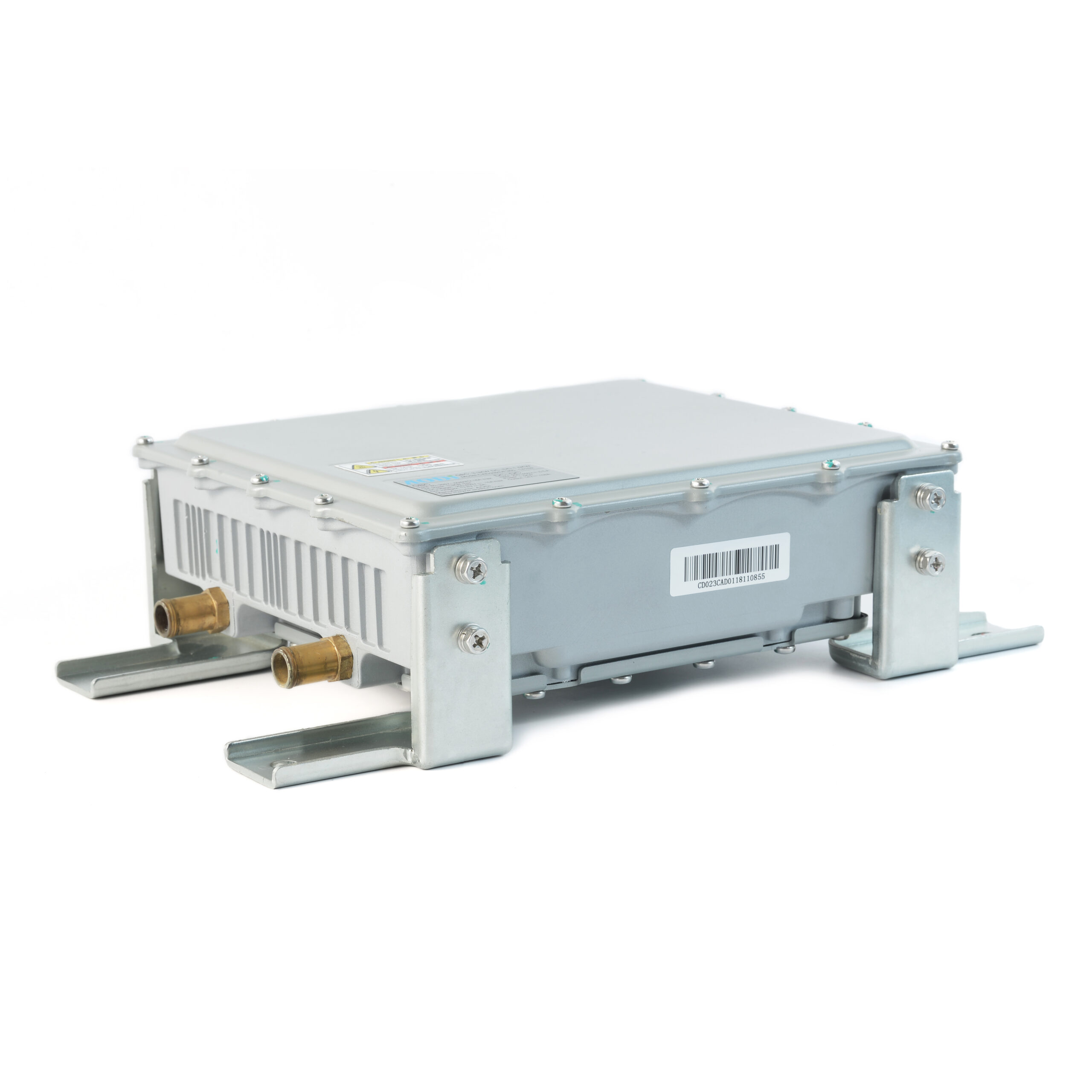

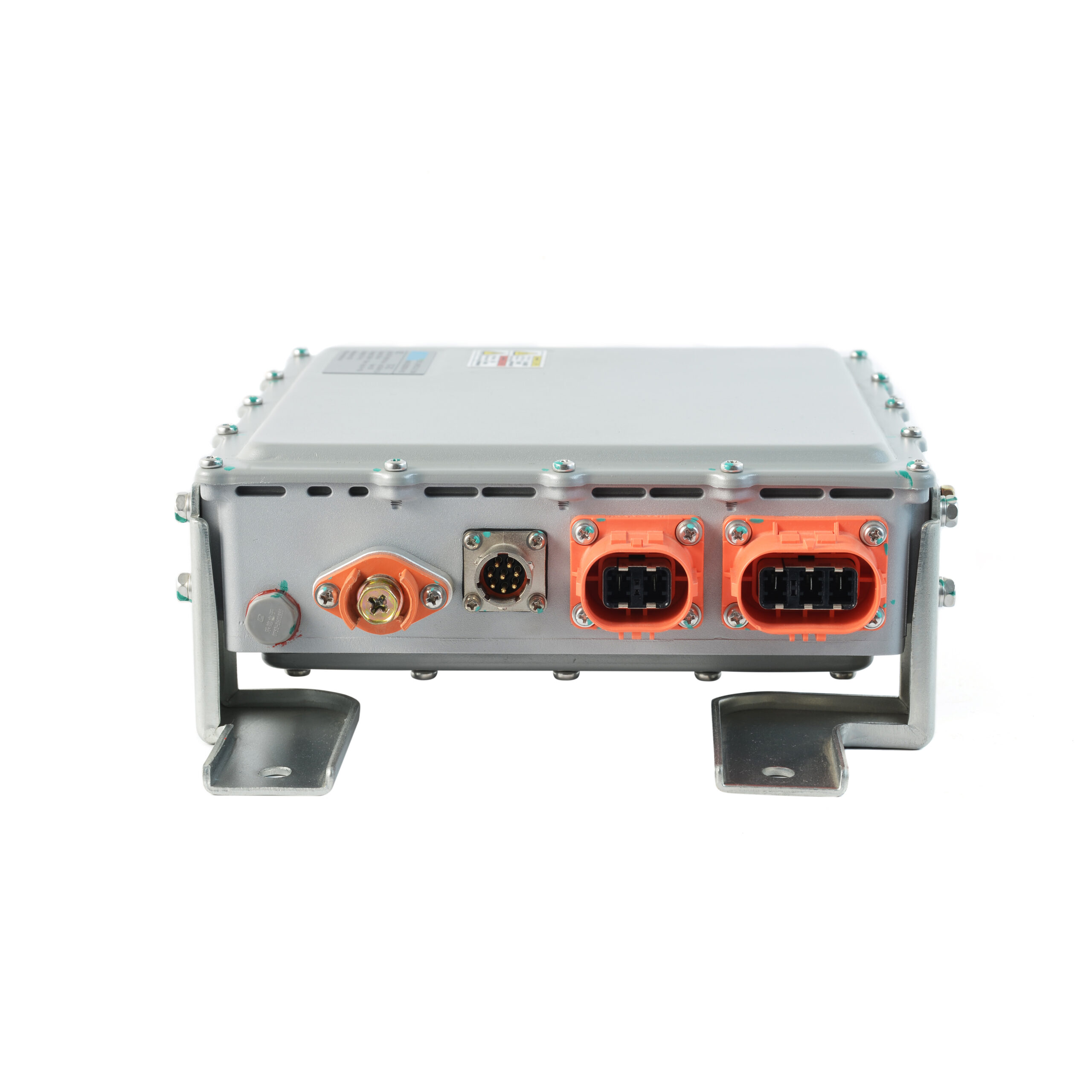

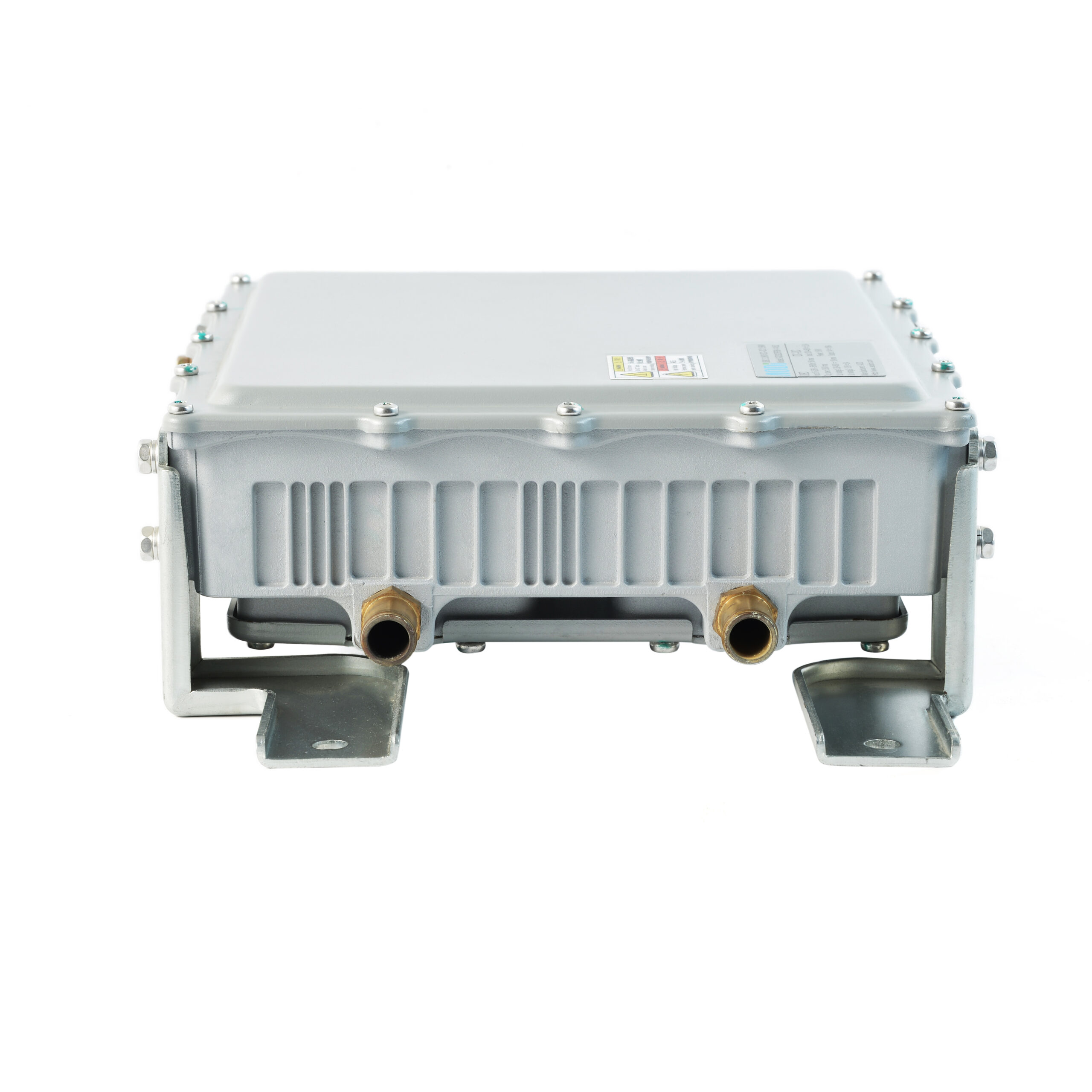

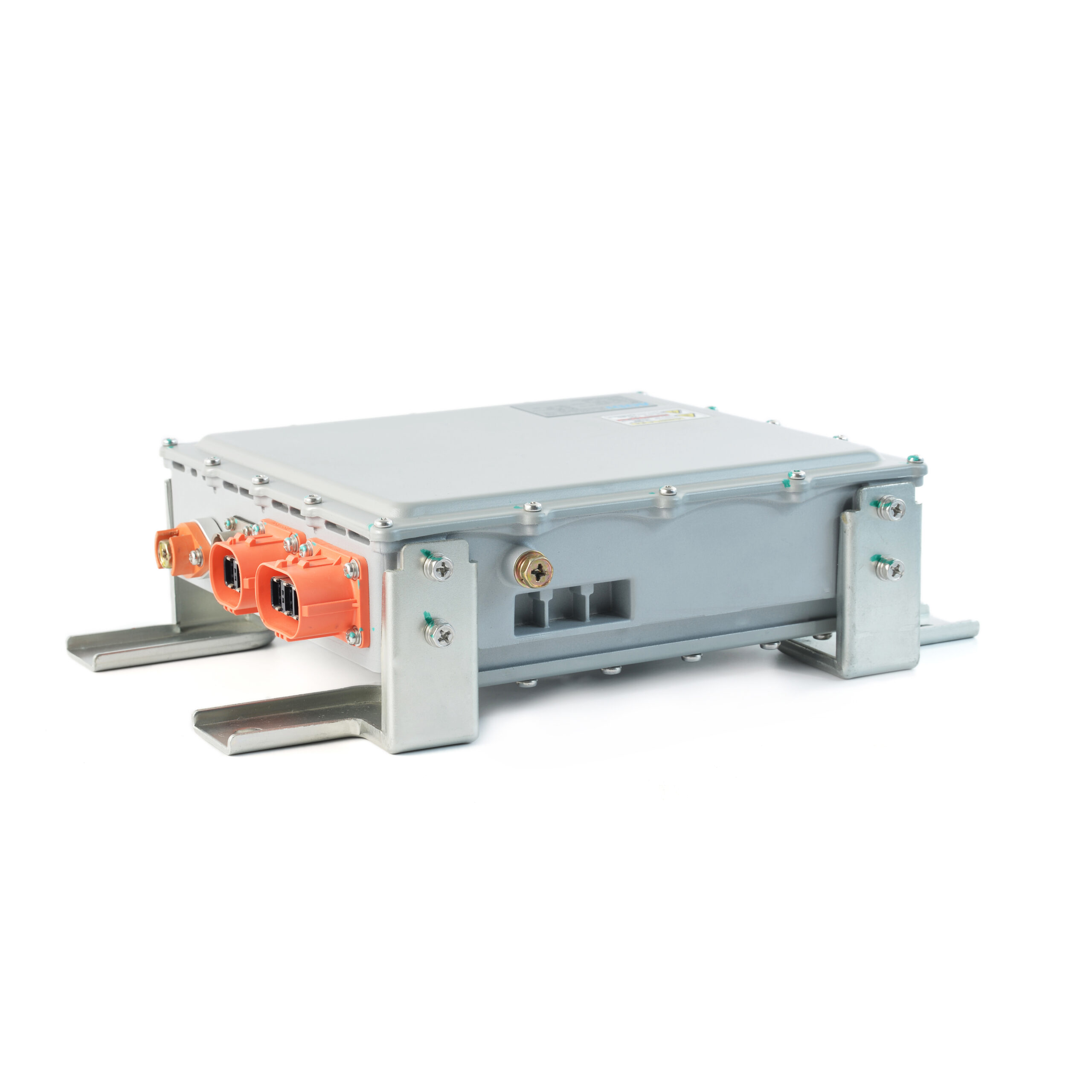

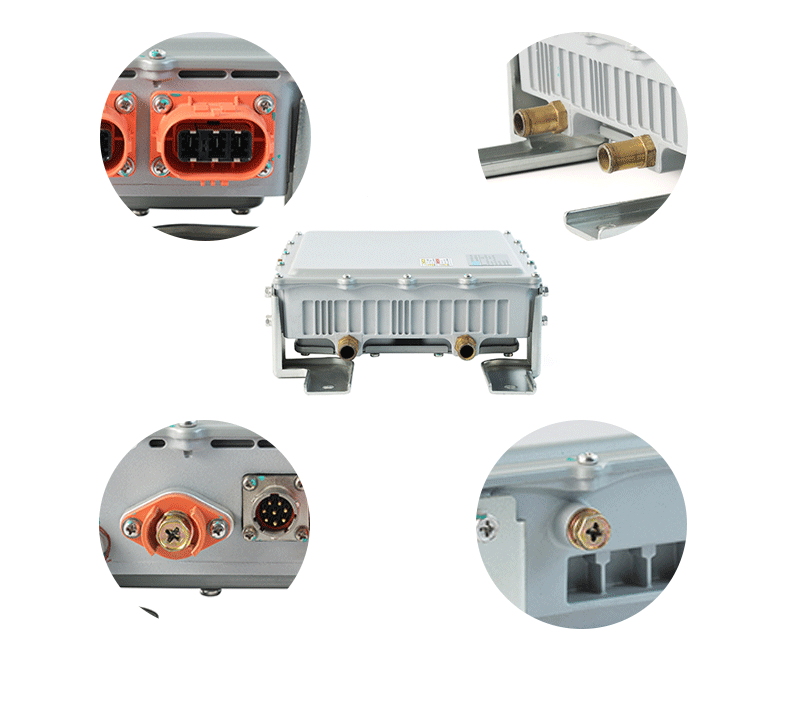

The Ovartech CAD332DF400A-14152 is a combination high-frequency 3.3KW OBC battery charger and 1.5KW DC/DC converter in one package, Integrated high-frequency battery charger, and DC/DC converter saves space, weight, and cabling thereby minimizing the cost of inventory, installation, and service.
CAD332DF400A-14152 on-board charger series is designed for electric vehicle battery charging with demand for efficiency, robustness, and safety. The electrical input voltage for CAD332DF400A-14152 ranges from AC 85~265V, making it an ideal selection for worldwide usage. Its high-efficiency performance makes the charging more economical. CAD332DF400A-14152 provides an intelligent charging mode that adjusts the voltage in CC/CV/cut off automatically. It also features short-circuit, over-voltage, over-current, and over-temperature protections undercharging. The CAN-bus interface delivers messages with charging flow, interlock connection, and any disconnection or error message to VCU (Vehicle Control Unit) via BMS (Battery Management System).
CAD332DF400A-14152charger series is in compliance with SAE J1772 and IEC 61851 to meet international standards, and with IP 67 for the critical operating environments.
Model | CAD332DF400A-14152 | 3.3KW OBC |
Power | 3.3KW+1.5KW |
Input voltage | 85-265Vdc |
Output current | 0-10A |
Output voltage | 200-450Vdc/13.8Vdc |
Cooling | Liquid-cooling |
Dimension | 382x259x101mm; |
Weight | 7kg; 15.4lbs |
IP rate | IP67 |
Interface | CAN BUS/Enable control |
