3.3KW High Voltage EV Battery Charger IP67 Scalable-easily paralleled for 6.6kW / 9.9kW / 13.2kW
Download Specifications: Ovartech Air-cooled 3.3KW OBC CAD332DF-400A Data Sheet

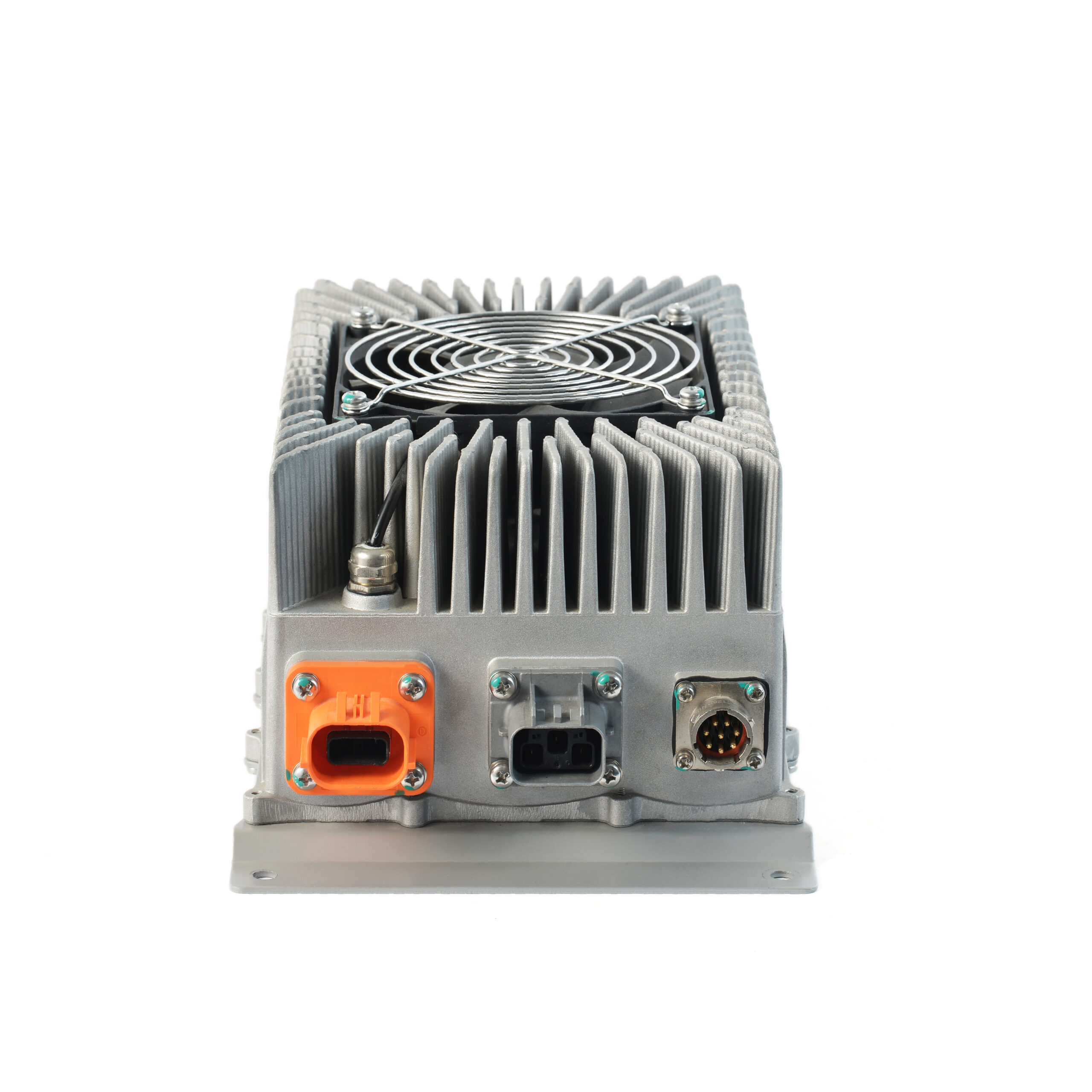

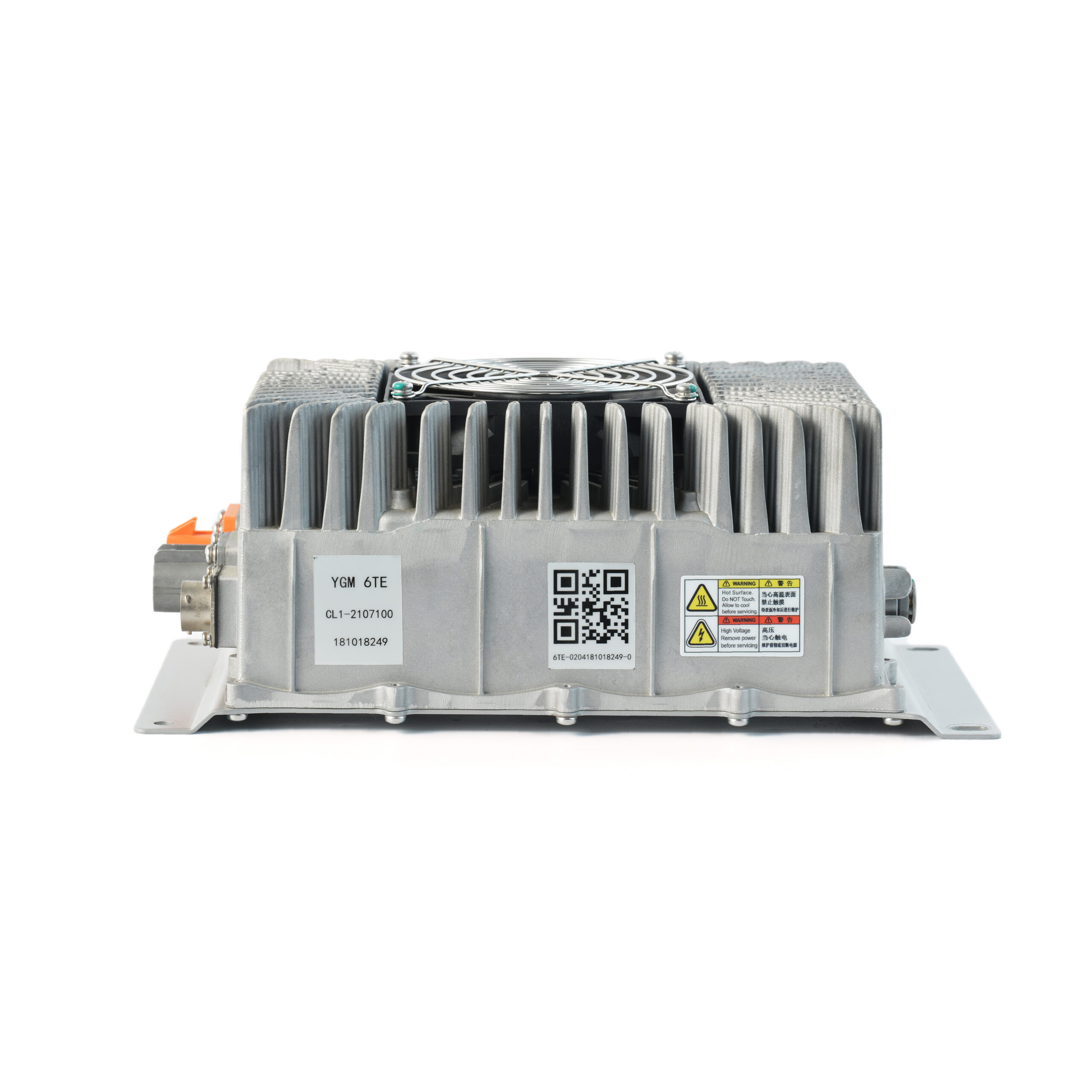

96V 3.3KW battery charger EV on board charger
Description
96V 3.3KW battery charger EV on board charger
The Ovartech CAD332DF-400A 3.3KW on-board charger series is designed for electric vehicle battery changing with demand for efficiency, robustness, and safety. The electrical input voltage for CAD332DF-400A ranges from AC 85~265V, making it an ideal selection for worldwide usage. Its high-efficiency performance makes the charging more economical. CAD332DF-400A provides an intelligent charging mode that adjusts the voltage in CC/CV/cut off automatically. It also features short-circuit, over-voltage, over-current, and over-temperature protections undercharging. The CAN-bus interface delivers messages with charging flow, interlock connection, and any disconnection or error message to VCU (Vehicle Control Unit) via BMS (Battery Management System).
CAD332DF-400Acharger series is in compliance with SAE J1772 and IEC 61851 to meet international standards, and with IP 67 for the critical operating environments.
| Model | CAD332DF-400A |
| Power | 3300W/3.3KW |
| Input voltage | 85-265Vdc |
| Output current | 0-10A |
| Output voltage | 96VDC,108VDC, 144VDC, 200-420VDC |
| Cooling | air-cooling |
| Dimension | 305x217x122mm; 12×8.5×4.8” |
| Weight | 4kg; 8.8lbs |
| IP rate | IP67 |
| Interface | CAN BUS/Enable control |
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally, it is 5-10 days if the goods are in stock. or it is 6 weeks if the goods are not in stock, it is according to quantity.
Q: What is the key technical advantage of your products?
A: We adopt digital control technology, which is convenient for remote upgrade and fully automatic production.
Q: What are your Engineering Testing and Validation capabilities?
A: We will respond to you within 2 hours and solve the problem within 24 hours.
Q: What are your terms of payment?
A: 100% prepayment.
Q: What is the MOQ (Mini Order Quantity)?
A: 1 unit.
Q: Do you accept customization?
A: Yes, OEM and ODM services are all supported.
Q: Will you provide a free sample before order?
A: Generally speaking, you need to pay for that.
Q: What is your sample policy?
A: We can supply the sample if we have the parts in stock, customers must pay the sample cost and the shipping cost.
Q: Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery, if necessary, we can send an inspection report before delivery.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive prices to ensure our customer’s benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
